Description
Grove Mesh Kit for nRF52840-MDK is a very versatile mesh networking development kit. It integrates development board, and 's most popular and easy-to-use .
Grove Mesh Kit takes full advantage of the multiprotocol capabilities of the nRF52840 SoC by supporting and networking. It allows developers to create IoT applications with Mesh Network Connectivity in a very short time.
Features
- The key features of the Grove Mesh Kit are:
- nRF52840 Micro Development Kit(nRF52840-MDK)
- nRF52840 Advanced Bluetooth 5, Thread and Zigbee multiprotocol SoC
- Program/Debug options with DAPLink
- Microchip 2-Port USB 2.0 Hi-Speed Hub Controller
- External ultra-low power 64-Mb QSPI FLASH memory
- On-board 2.4G chip antenna
- U.FL connector selectable for external antenna
- Reversible USB 3.1 Type-C Connector
- Buttons and LEDs for user interaction
- Up to 24 GPIOs available via headers
- Base Dock (Grove Compatible)
- Dual 2x18 Socket Headers
- 4 Grove connectors with UART/I2C/I2S/PDM/QDEC/SPI/ADC selectable
- Supporting NFC-A Listen Mode with PCB NFC Antenna
- AA Battery power supply Power
- Button with Latching Circuit
- Battery level sensing
- 6 easy-to-use
- Grove modules
- Grove - Button
- Grove - Light Sensor
- Grove - Rotary Angle Sensor
- Grove - Sound Sensor
- Grove - Temperature Sensor
- Grove - Touch Sensor
Block Diagram

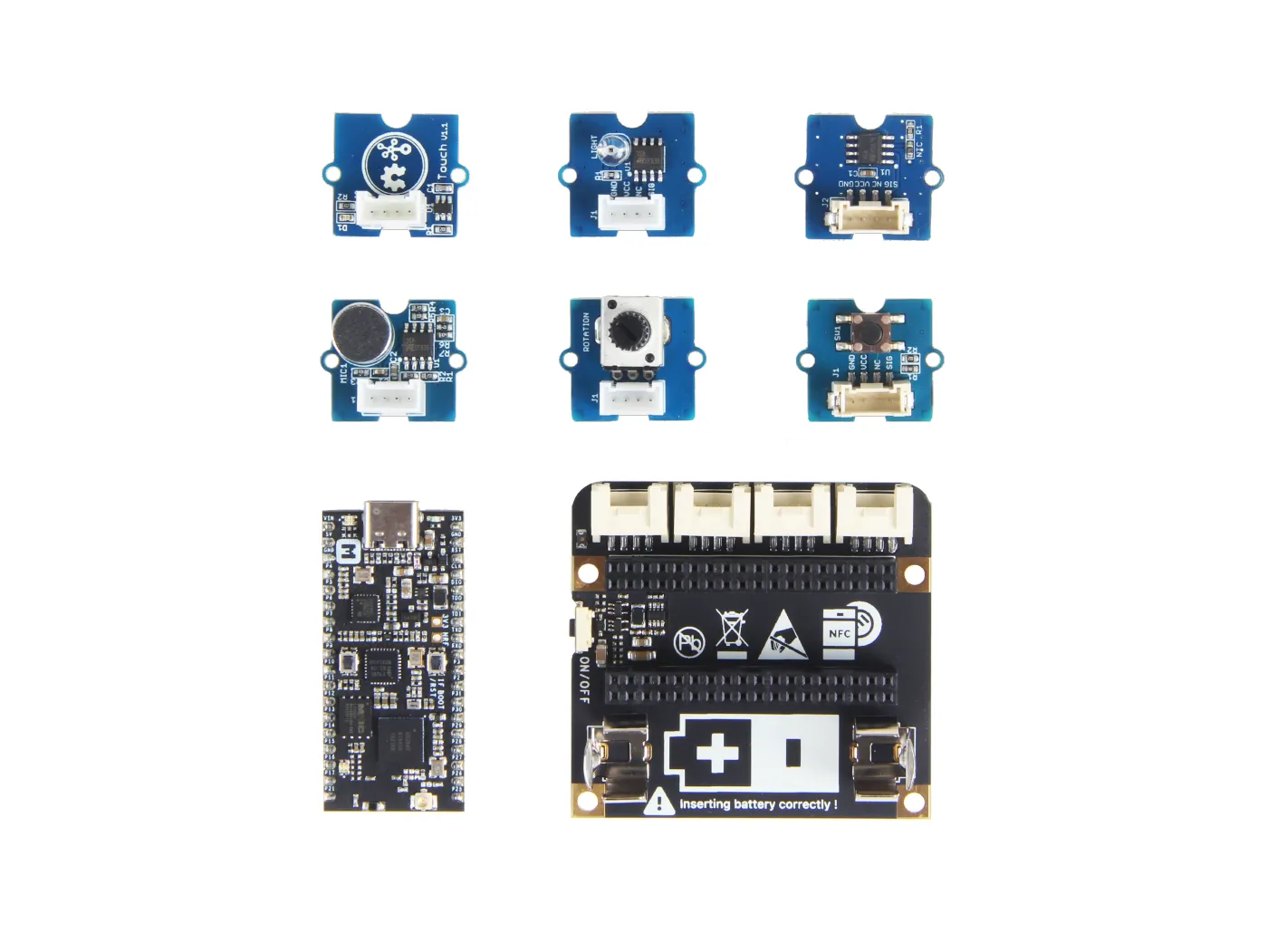

Part List
| 1 x Grove - Button |
| 1 x Grove - Temperature Sensor |
| 1 x Grove - Rotary Angle Sensor |
| 1 x Grove - Sound Sensor |
| 1 x Grove - Touch Sensor |
| 1 x Grove - Light Sensor v1.2 |
| 1 x nRF52840 Micro Development Kit |
| 1 x nRF52840 MDK Base Dock |
ECCN/HTS
| ECCN | ERA99 |
| HSCODE | 9023009000 |
| UPC |
Tutorials
We think the best way to learn is by doing. And to help you get started, we have provided a series of tutorials. Find the details below.
