Ideal for heavy continuous intensive use in any climate, for residential, commercial or industrial gates.

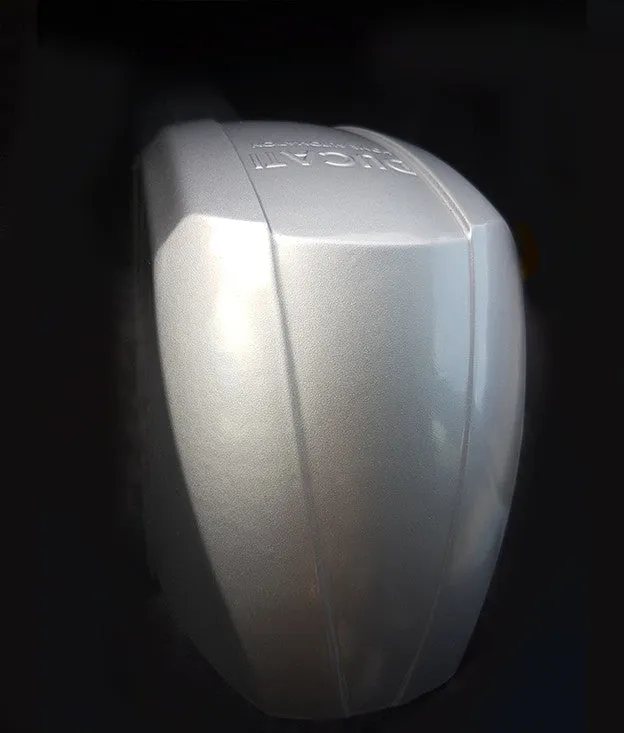

Features a Heavy-Duty Cast Aluminum Housing DC Motor powerful enough
to perform in the most demanding applications. Soft start/stop operation extends operator and hardware life for heavy-duty gate use.

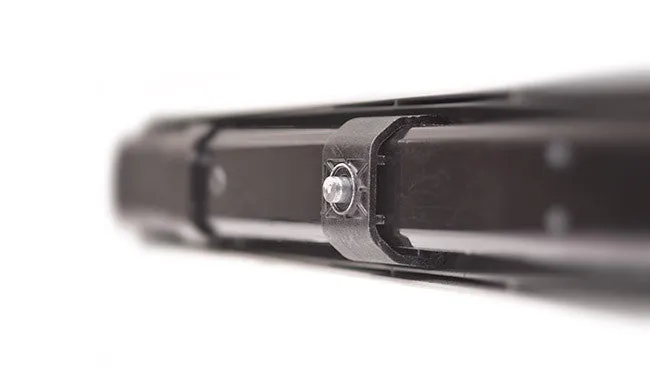

Innovative motion transmission system eliminates the traditional lower slot. Unique anti- hand-crushing system

Ensures 100% autonomous use even where AC power is unavailable

DUCO FAST technology

• Quick closing and opening
• Open your door faster than ever!
• powerful & reliable  high speed motors faster than ever. ensures faster opening and closing of your door
• The perfect answer where rapid manoeuvres are required, ensuring the shortest standing time and the maximum safety: for urban high-traffic areas ensures prompt action where rapid intervention is needed.

DUCOSOL Technology

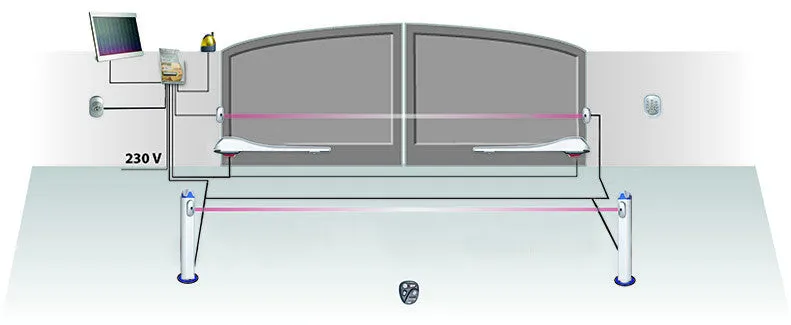

Versatile, operates by 3 type of power supply

• A.C. 110/230V 60/50Hz
• By emergency battery
• By solar panel

Highly reliable as featured with Ducati's low consumption technology DUCOSOL: with only 7mA stand-by consumption ensures long lasting performances in all weather condition.  Ideal for residential use. Up to 50 cycles daily guaranteed . No additional modules requires: it's all included: on board solar panel & battery recharge management!

SOFT STOP

• The opener stops in both directions decreasing the speed and avoiding unwished banging closing.
• This prevent from usury and ensure long life to your opener and door.
• This function prevents the door banging closing

ARS (Automatic Reversal System)

Thanks to the integrated amperometrical detection system and direction sensor, the opener is provided with an automatic reversal system in case the gate reaches an obstacle, the opener stops immediately and reverses automatically. Highest safety is ensured.

DUCO SAFE

obstacle detection safety system guarantees maximal safety of use to your family

SELF LOCK TECHNOLOGY

The self-locking properties of the spindle increase the protection against a dangerous and unauthorized “pressing” of the gate and the otherwise necessary e-locks for the final positions can be omitted. A massive 20 mm diameter three principle steel spindle made of PR80 steel ensures long and reliable operation

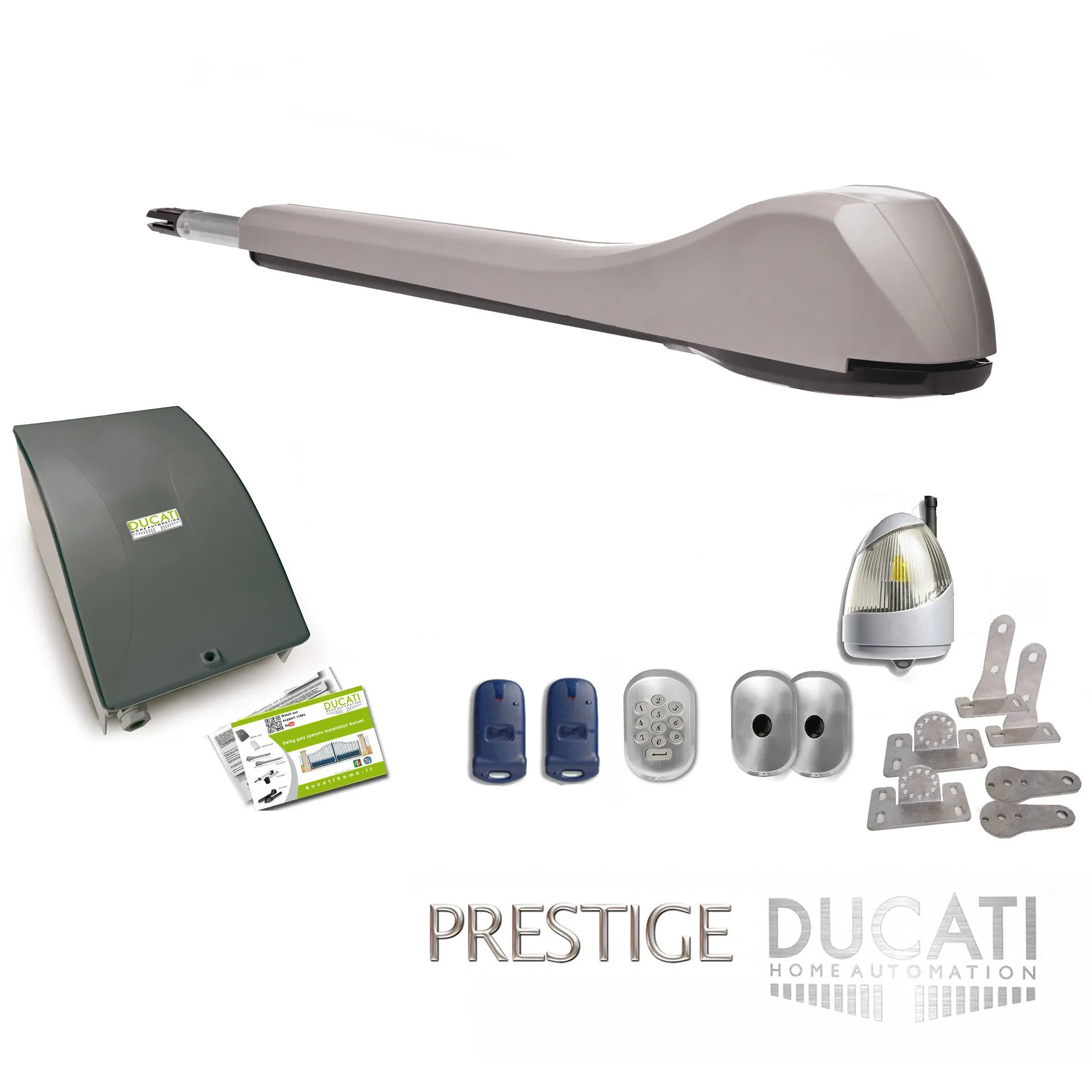

Kit Contents

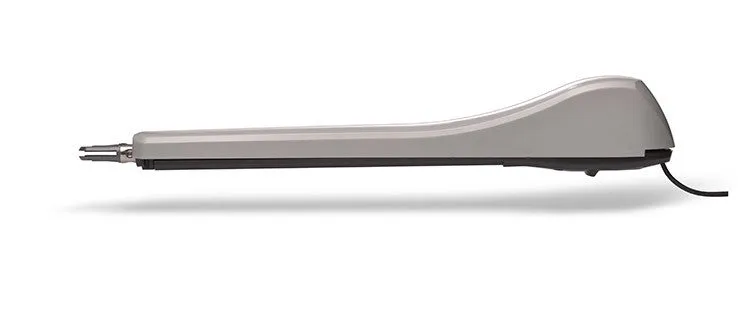

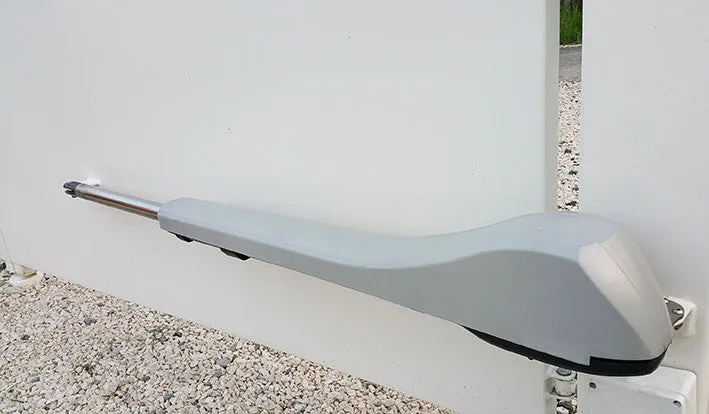

• 1x EVE900T telescopic 500mm stroke (choose 12 or 24v variant) electro mechanic irreversible actuators supplied with 1 m outdoor use cable H05RN-F 2 x 1mmq . Integrated mechanical limits for the gate open and closed position.

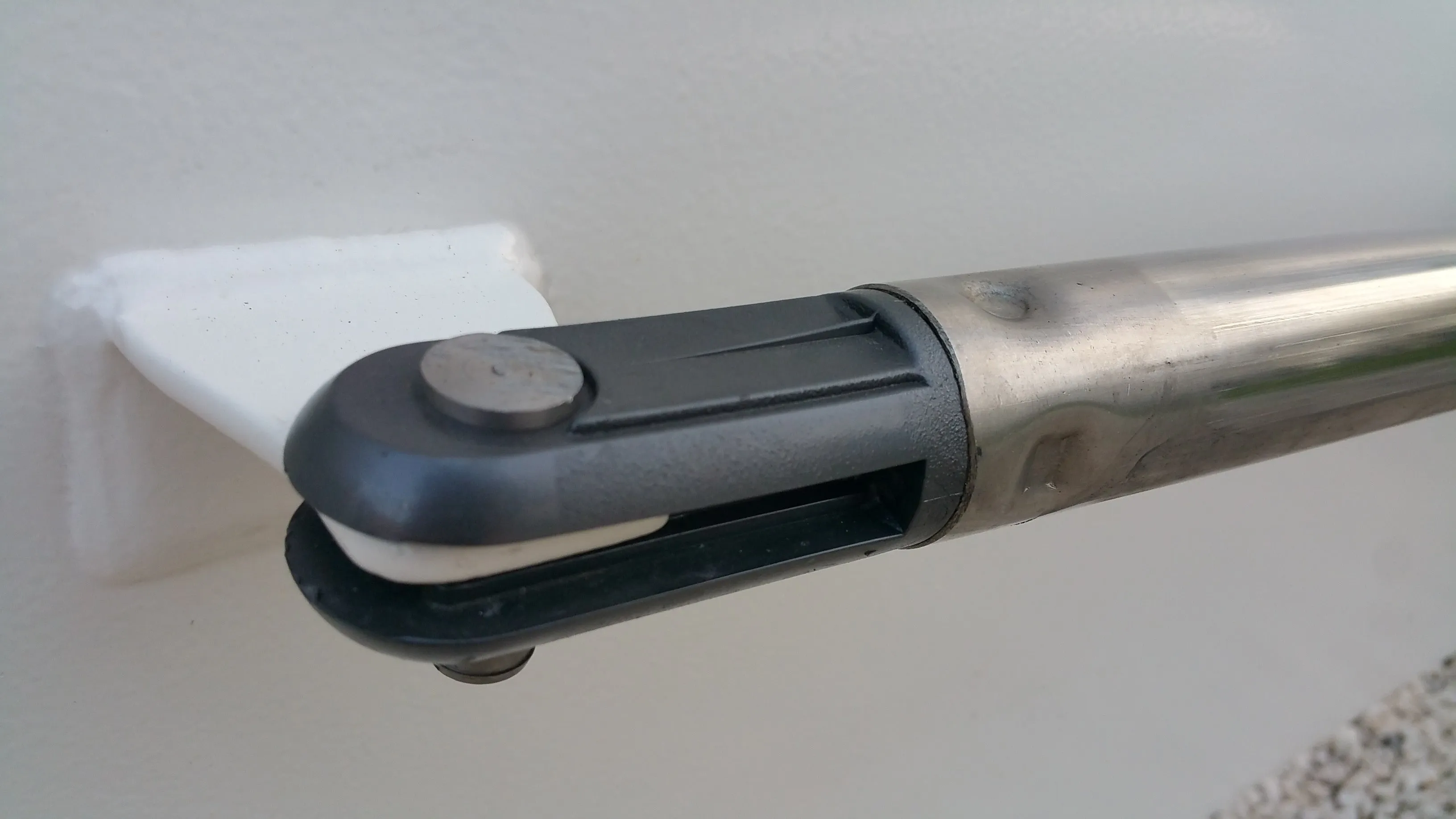

• set of actuator's  stainless steel multi position fixing brackets

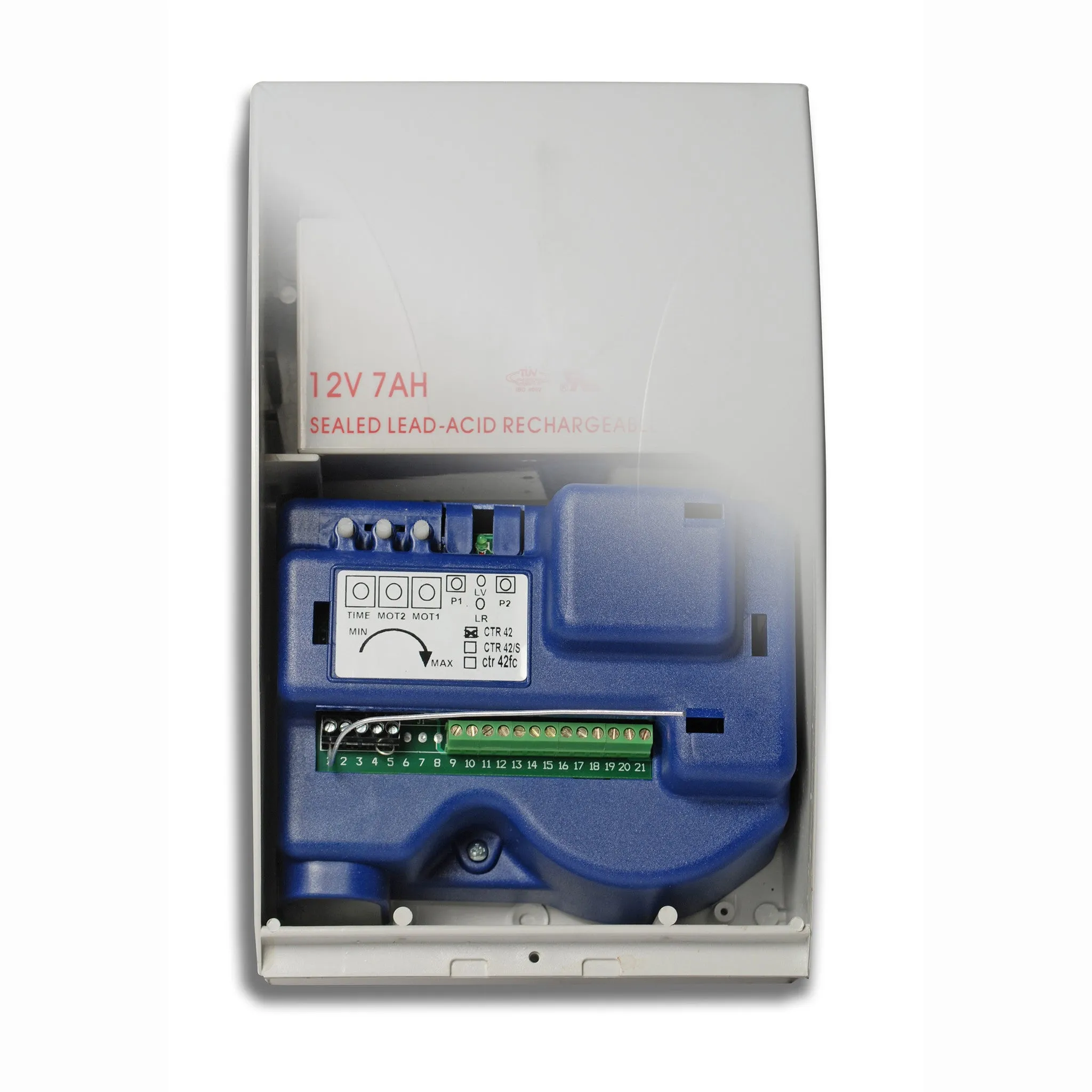

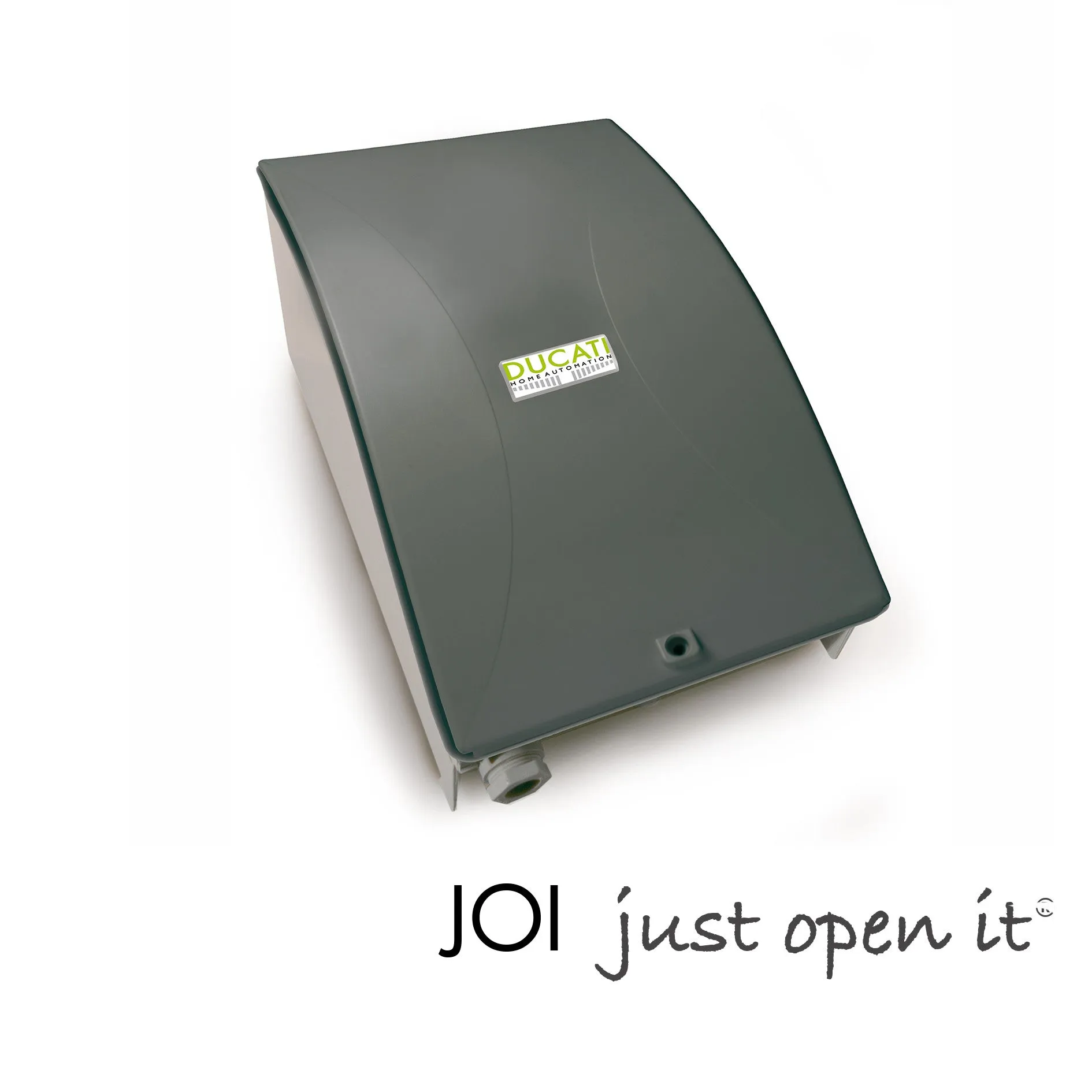

• 1x KONTROL 9048 (12 or 24v variant) large control box with electronic board, toroidal transformer, integrated radio receiver

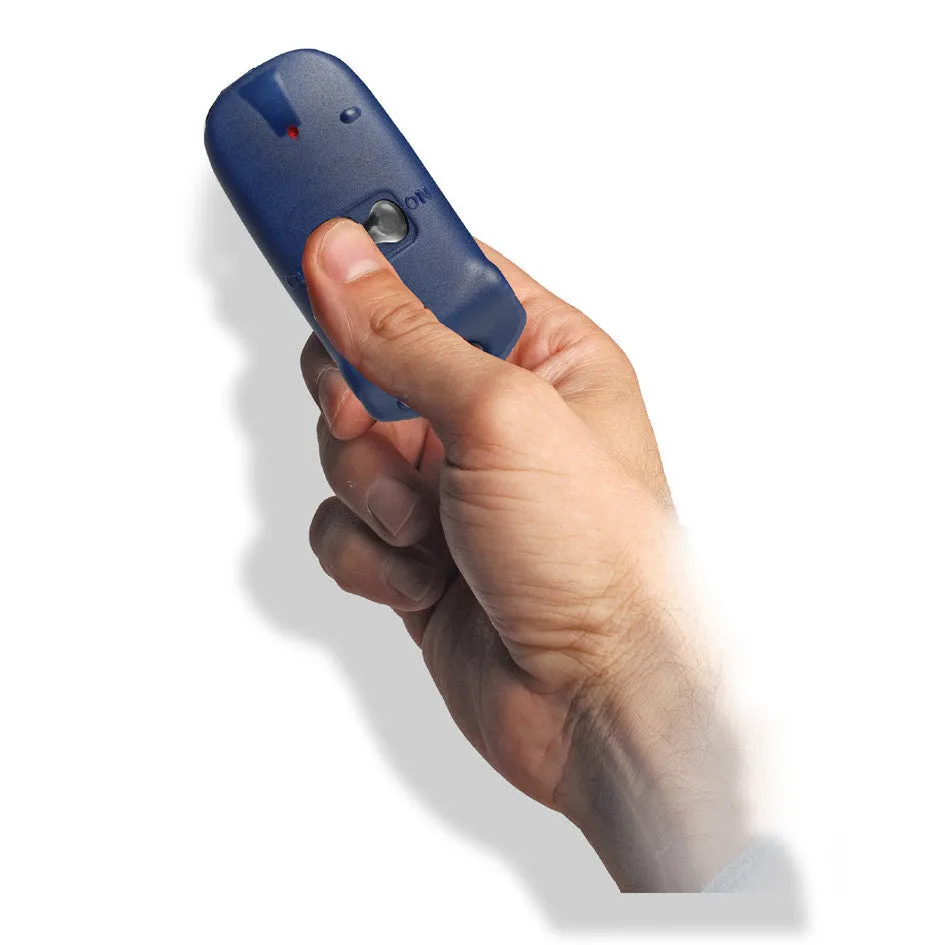

• 2x 6203Roll - 2 buttons 433,92 Mhz  rolling code radio transmitters

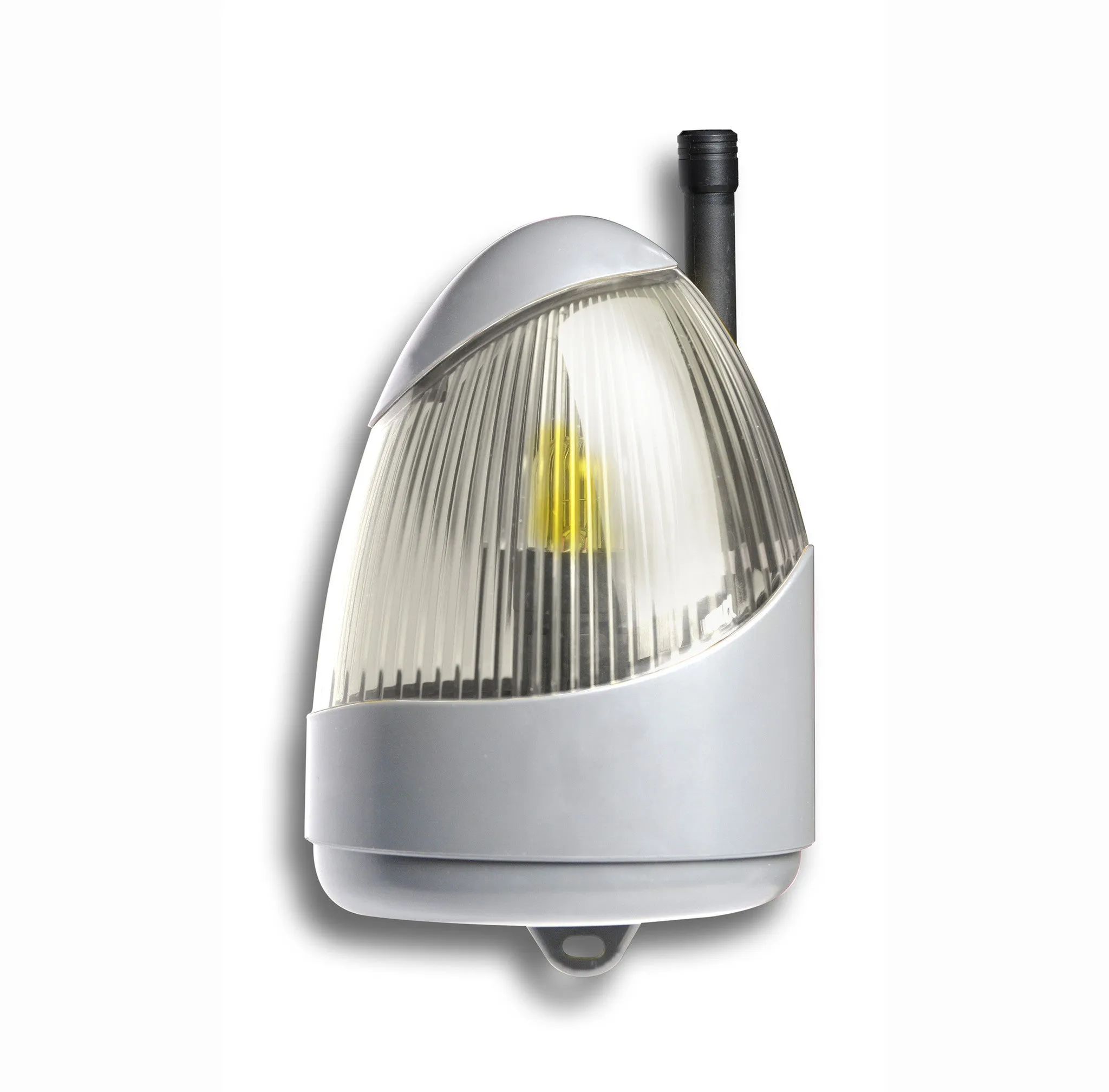

• 1x FLASH7700 - blinking light

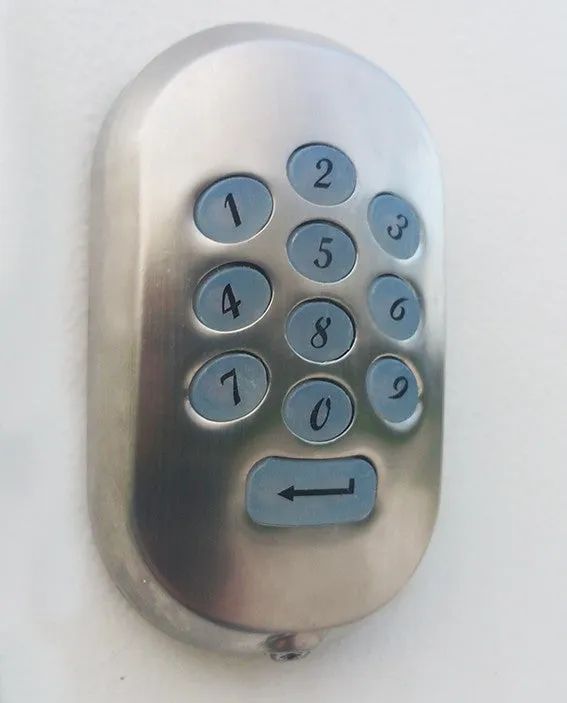

• 1x TASTY 6500- radio keypad ( wireless) 1 channel made in stainless-steel

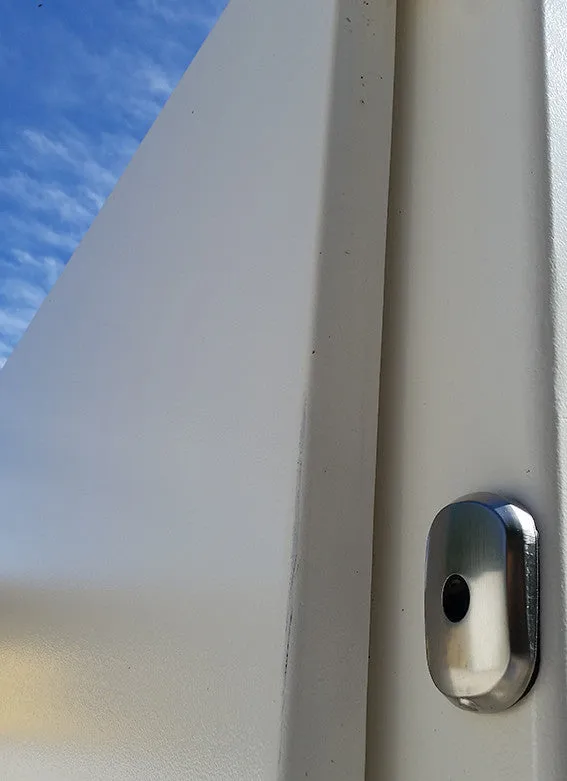

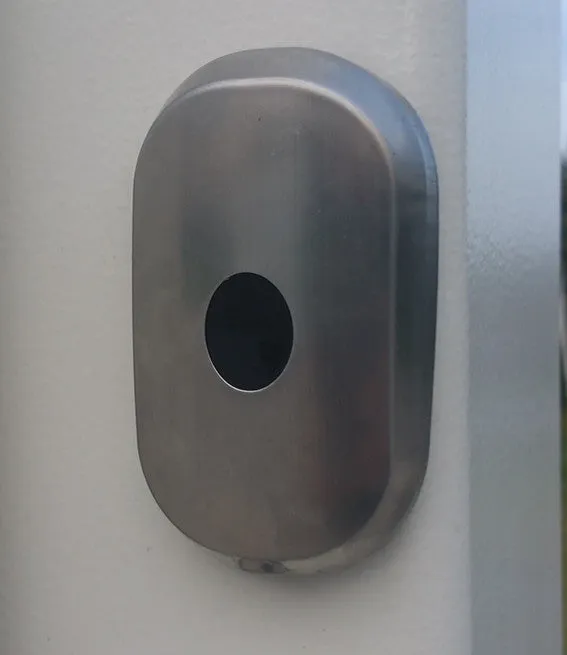

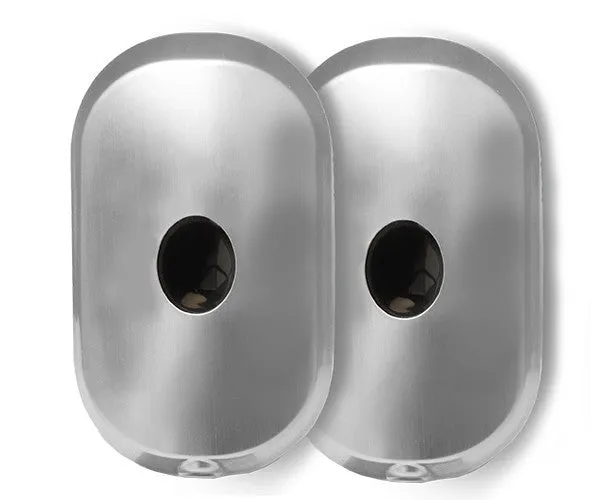

• 1 x LASER 7120 - pair of low consumption safety infrared photocells made in stainless-steel
• 1 x STILO 6025 -external antenna
• 1x key for manual emergency release
• 1x instruction manual
• 1x  warning sign

Features

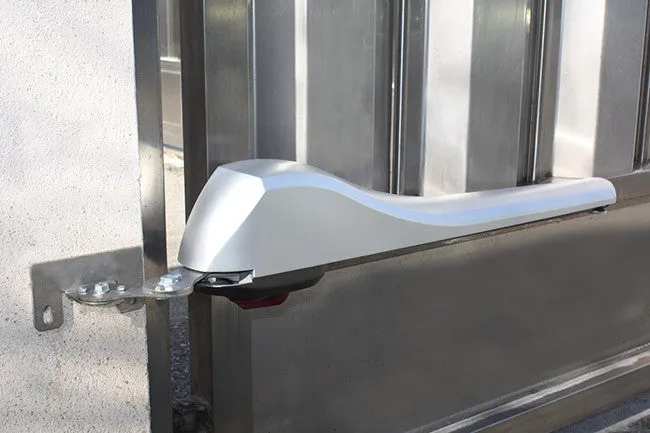

• POWERFUL  500mm stroke telescopic actuators with robust alluminium shell ( choose 12V or 24V version) Integrated mechanical limits
• Quick closing and opening. Open your door faster than ever !
• Double speed with SOFT STOP
• SOFT STOP  adjustment: you can postpose/anticipate the slowdown phase
• Obstacle detection sensitivity adjustment
• Inverse movement by obstacle detection while closing
• Control unit with integrated battery housing compartment
• Integrated battery charger on board: just ready for connection to 1 x 12V battery ( for 12V version) or 2 x 12V emergency batteries in series connected( for 24V version). In case of power failure works autonomously up to 3 days
• Integrated solar panel management: the card is a just ready to operate autonomously powered by solar panel. NOTE: For 12V version add a standard 12V battery  1 x 12V min.10W solar panel. For 24V version add  2 x 12V batteries in series connected 24V min. 20W solar panel. No extra module needed
• Low consumption technology: only 0,007A stand-by consumption for the 12V version and only 0,014A !  Protect the environment, reduces waste of energy and  gives long lasting autonomy with battery /solar panel use
• Automatic closing with adjustable time (you can vary the pause time from 1 to 100 seconds) or step-by-step ( push to open/ push to close)
• Adjustable motor power/ obstacle detection sensitivity. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy:  just need to rotate  potentiometer related to each motor.Status Warning light output: an external wired LED light can be connected to indicate if the gate is open, closed, closing or opening
• Ideal for a safe, quick and easy  installation: the system is electrocution risk-free.
• heavy duty opener: can work in continuous cycles  without overheating
• Adjustment of the time lag between the two doors
• Pedestrian opening (1 partial opening the wing to allow the pedestrian crossing only) can be controlled by remote control or wired control.
• Possibility of connecting an external timed courtesy light (example: garden light)
• The gate is  automatically locked in closed position ( irreversibile system).
• Electro-lock is not needed, but recommended for wing longer than 2,8m each. Compatible with 12V electric-lock ( Booster required)
• Made in Italy - All components are manufactured in the company to warranty high  quality and reliability.
• After sale service and assistance provided directly by manufacturer without intermediaries
• Easy  self-storing  of the remotes controls by pushing one button
• Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells  are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
• : product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
• Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
• Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.

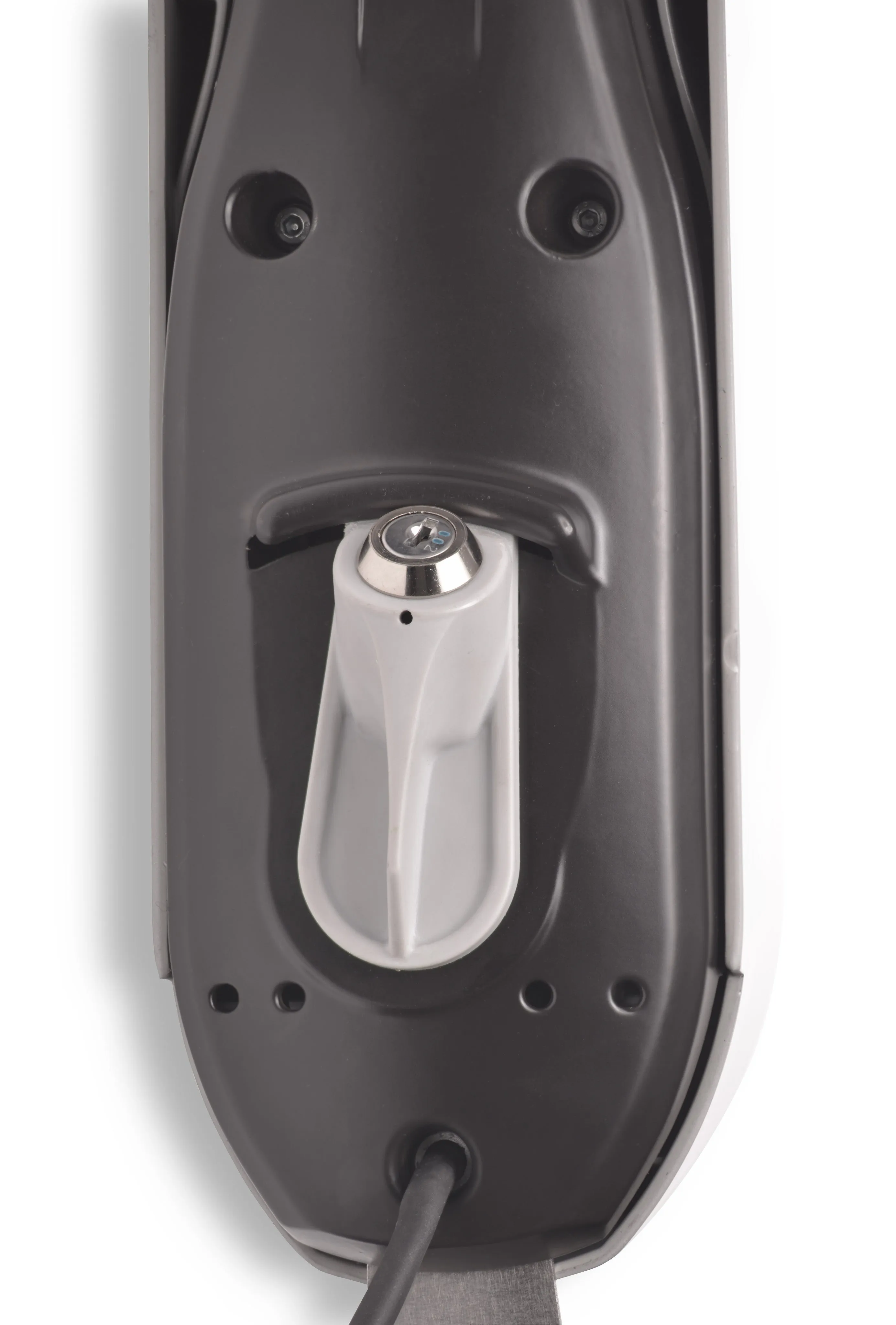

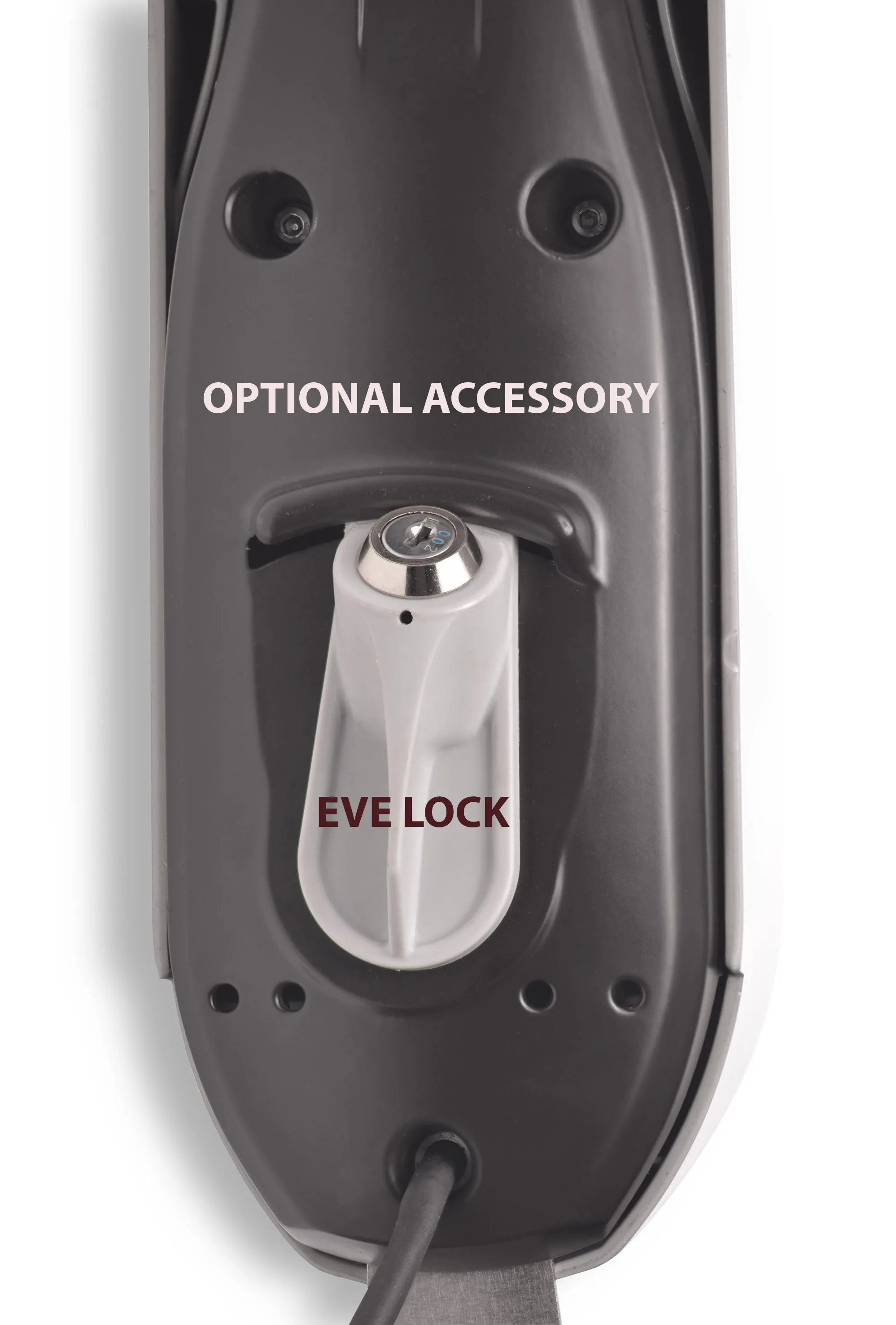

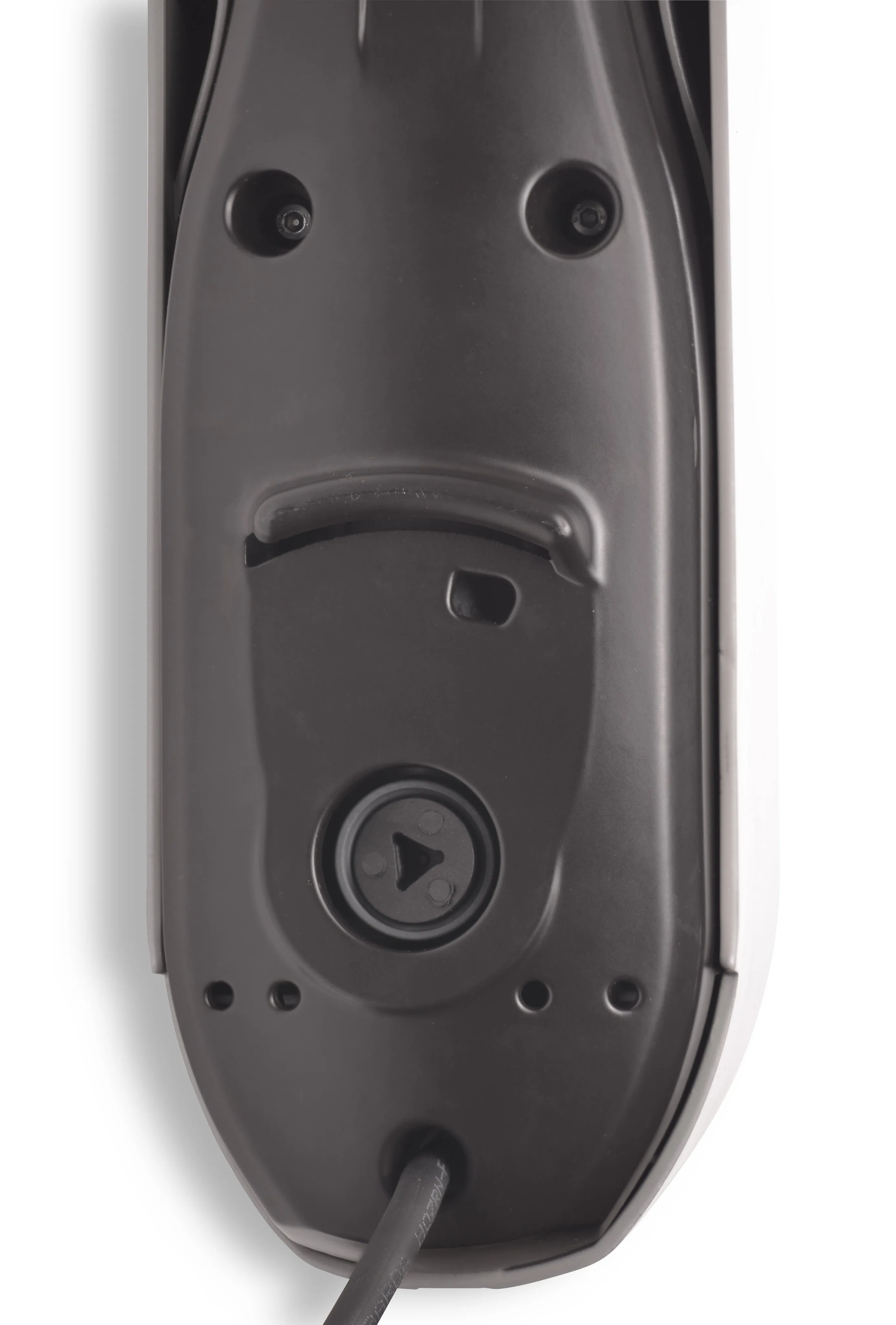

• Manual release system by universal triangular key

Technical data

ACTUATOR  TECHNICAL DATA

ELECROMECHANICAL TELESCOPIC  ACTUATOR EVE 900 T

NOTE: the actuator  comes with on board mechanical limits to set the open and closed position of the wing.

CTH48 ELECTRONIC BOARD TECHNICAL DATA

(solar panel & battery management on board)

Manual

to download general instruction manual

 click to download installation diagram

 click to download electronic board diagram

 remote control instructions

CTH48 installation video
