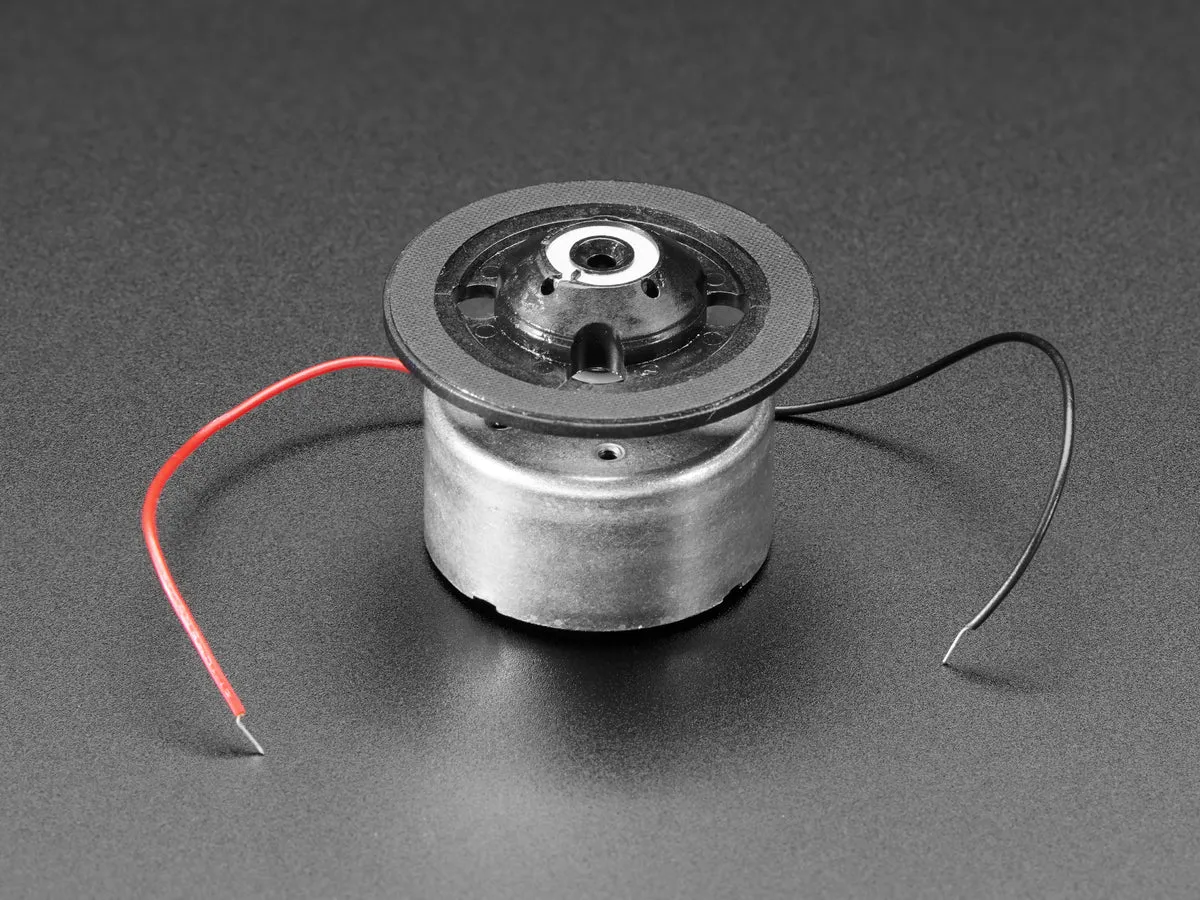

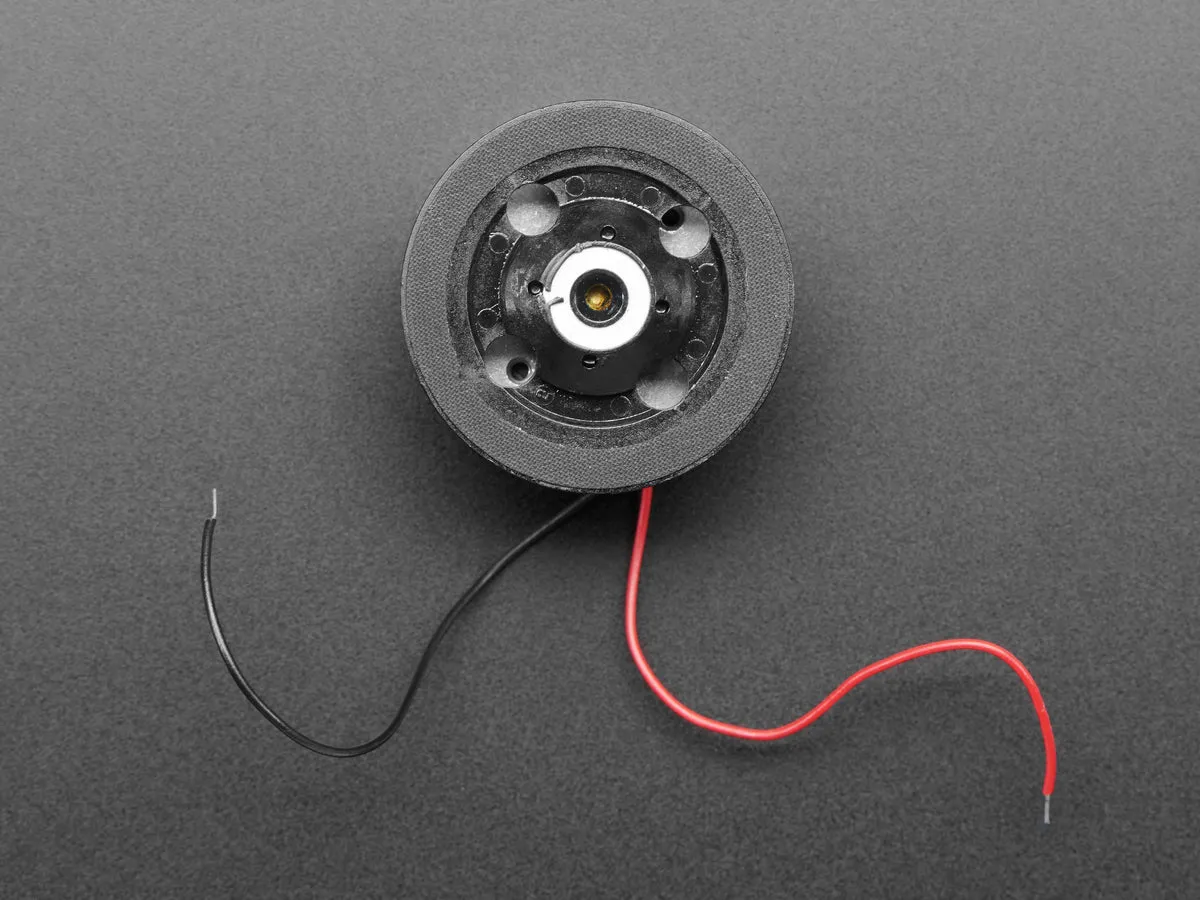

What's this? A record player for ants?? Not at all! This is a DVD/CD Spindle Motor, that thing that's inside a CD or DVD player, that turns the disc around really fast. These motors have some great benefits that make them
- For one, they're mostly flat on the end, so you can tape or glue it to a flat surface easily.
- They are well balanced, don't vibrate a lot which makes them nice and quiet compared to most other motors (they're not totally silent)
- They spin fast, about 3500 RPM at full power - can PWM the motor driver to reduce speed
- 20 mA free running current, 400mA stalled.
- The motor is rated at 5.9V max. You can use 3V to 6V DC, the speed and torque may vary
- They've already got a plastic hub on em, so its super easy to attach whatever you like
It is a motor, so you'll need a motor driver to control it. We recommend , but you can also use an , , , L293D, or.
Technical Details
- 5.9V max voltage
- Motor diameter: ~22mm
- Spindle diameter: 30mm
Product Weight: 22.4g / 0.8oz
